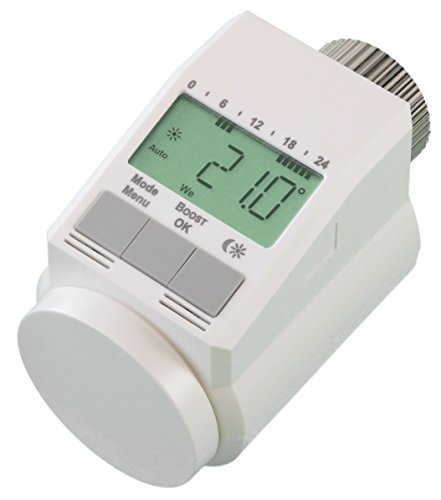

What you should know about the comfortable house Classic Type L radiator thermostat

The comfortable house Heizkörperthermostat Classic Type L is ideally suited to reduce the energy costs of heating by 30%. It is a simple and low-priced model that is easy to install.

The delivery

The comfortable house Heizkörperthermostat Classic L is one of the few products that have already Batteries Included. It has a 30 x 1.5 top to fit on all M30 x 1.5 radiator valves. Here, the manufacturer does not matter.Included also is an extensive manual and an adapter for Danfoss valves RAV, RA and RAVL included. The adapter set is described on page 11 of the manual. The package also included a metal nut. must be destroyed or removed at the radiator valve To use them the Plastikverschraubung.

The installation of thermostatic radiator Classic L

The installation of the radiator thermostat is very easy The thermostat consists of a thermostat and can therefore be mounted directly onto the radiator valve. Before an installation should be inserted in any case the supplied batteries. Directly after inserting a rotating type icon and the message "To THe" appears on the display. Thereafter, the thermostat will automatically load, so it is better to mount. Using the jog dial to the date and time can be changed. This entry is confirmed with the OK button. To tighten the thermostat properly requires a water pump pliers. After assembly, the adaptation and coding begins can be started. For a weekly program 3 heating periods (7 switching times) are possible. All values can be set using the jog dial.

The operation of the thermostat

The rotary knob has a good quality and can be adjusted easily. In an automatic mode, no further input is required.The thermostat regulates reliably the desired heating periods. On thermostat a boost function is present. Pressing provides a manual, short and rapid heating of the heater. The valve is thereby opened for five minutes to 80%. This ensures that the heat is perceived in the short term. By day / night setting, which is displayed on the thermostat with a sun and crescent, the setting between manual and automatic mode switch. The change takes place 21 ° C and the setback temperature of 17 ° C between the comfort temperature. In an automatic mode, the thermostat maintains the selected temperature until the next switching point.

The control of the thermostat

The comfortable house Heizkörperthermostat Classic L regulates very reliable all programmed temperatures. but it has like most thermostats problems when the window is open. Although the thermostat has a window open detection, responding to the change in temperature only tentatively. Normally, the setting is intended that unnecessary energy consumption is avoided during ventilation. The delay can, among other things are the distance between windows and heating. The closer a radiator is mounted on a window, the faster the response time. In an airing, it is therefore always advisable to manually adjust the thermostat to a low temperature. After completion of ventilation, the temperature can be increased as desired again.

The properties of the product

The most important feature of Heizthermostats is the ease of use and installation. This thermostat is an electronic radiator thermostat, which has a weekly and daily programs. By using an energy saving of up to 30% is possible.The Boat button causes a short-term heating of the heater. If the heater is adjusted, then softly manipulated sounds are heard.
